How to Choose a Trailer Hitch Extension: Length, Fit and Capacity

A trailer hitch extension can create clearance between your vehicle and a trailer or hitch-mounted accessory. The right choice depends on more than the advertised length. Receiver fit, the loaded setup and both weight ratings matter before you tow.

When do you need a hitch extension?

An extension moves the receiver opening farther behind the vehicle. That can help a ball mount, bike rack or cargo carrier clear a spare tire, tailgate or camper overhang. First check whether a suitable ball mount or accessory shank already provides the clearance you need. Adding an extension introduces another connection and changes how the load acts on the hitch.

1. Measure the clearance you actually need

With the vehicle parked on level ground, identify the nearest point that could contact the trailer or accessory during normal use. Measure from the existing receiver area to the desired connection point, then allow room for turning, tailgate movement and any accessory movement. Check the product drawing for how its advertised length is measured; overall length and added distance are not always the same thing.

Choose the shortest extension that provides the required clearance. A longer extension places the load farther from the vehicle and may impose a lower usable weight limit.

2. Confirm receiver and pin compatibility

Measure the inside opening of your vehicle's receiver, then match both ends of the extender to the receiver and the accessory shank. A 2-inch extension is for a compatible 2-inch receiver; a different receiver size needs an appropriate, specifically rated solution. Confirm pin diameter, hole alignment and usable insertion depth as well. Do not assume that matching the square opening alone proves the complete setup fits.

3. Check GTW and tongue weight separately

Gross trailer weight (GTW) is the total loaded trailer weight. Tongue weight (TW) is the downward load at the hitch connection. Both the extension and the vehicle/hitch have limits. The usable capacity of the complete setup is controlled by its lowest-rated component, and an extension may reduce the receiver's effective capacity. Follow the vehicle, hitch and extension manufacturers' instructions for your exact combination.

For a bike rack or cargo carrier, account for the accessory plus everything loaded onto it when checking the applicable tongue-weight limit. For a trailer, check loaded GTW and actual tongue weight. A large GTW number does not replace a TW check. Do not assume every extender uses the same capacity reduction or is approved for every towing configuration.

12-inch vs. 18-inch: compare the complete setup

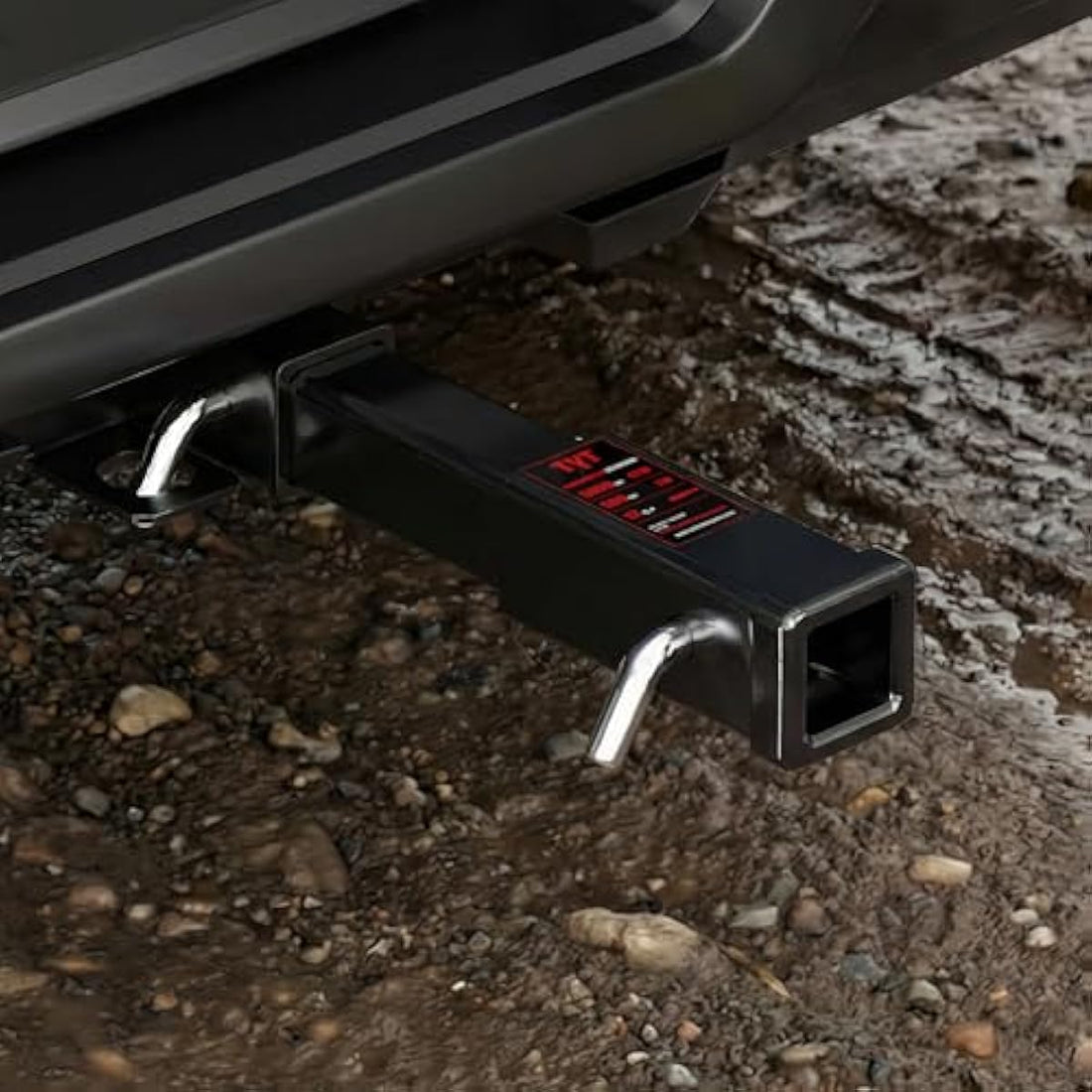

OpenHeavy lists a TYT 12-inch trailer hitch extension for a 2-inch receiver with a listed 5,000 lb GTW rating. The TYT 18-inch trailer hitch extension is listed for a 2-inch receiver at 3,500 lb GTW and 350 lb TW. These are product ratings, not automatic ratings for your vehicle after installation. Review each product page and the instructions supplied with the actual unit before selecting one.

If 12 inches provides enough clearance, there is no reason to add six more inches simply because the longer option exists. If you need the longer reach, verify that the entire loaded towing or accessory setup remains within every applicable limit.

Before you leave

• Confirm the extender and accessory are fully seated and secured with the correct pins and clips or locks.
• Check that the trailer coupler, safety chains, wiring and breakaway cable have the routing and movement required by their manufacturers.
• Turn and operate the tailgate or rear door slowly to confirm clearance before driving.
• Recheck connections and loading after the first short drive.

Frequently asked questions

Does a hitch extension reduce towing capacity?

It can. Added distance changes the load on the receiver, and products specify their own ratings and use restrictions. Read the instructions for your vehicle, hitch and extender, then use the lowest applicable limit.

Can I use an extension with a bike rack?

Only when the rack, extender and vehicle hitch are compatible and the loaded rack remains within the applicable tongue-weight rating. Some racks restrict use with adapters or extensions, so check the rack manual too.

Which length should I buy?

Measure the clearance needed for your exact vehicle and trailer or accessory. Choose the shortest compatible extension that clears the obstruction and meets all relevant ratings.

Explore OpenHeavy's trailer hitches and towing gear to compare extensions and related hardware.

Reference: CURT's towing guide explains why the lowest-rated component determines the system limit. Product-specific ratings above come from the linked OpenHeavy listings.
